Machines & Accessories » Cables & Shunts » Air-Cooled Jumpers (ACJ)

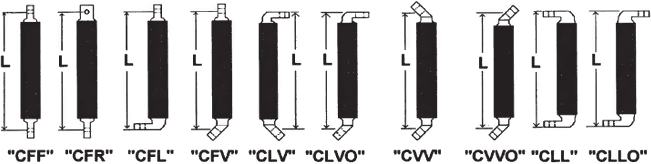

Terminals can be furnished with any desired angle (See terminal standard configurations below).

As standard and unless otherwise ordered:

• the 1-1/4” width will be supplied up to and including 1500 MCM size.
• the 600 - 1500 MCM size can be furnished in the 1-3/8” width.
• the 2000 MCM size will be furnished in the 1-1/2” width.

When so ordered, Automotive standards will automatically be met such as Ford-WKA series and GMCBL series.

Terminal Length:

The contact surface length of standard Air-Cooled Jumpers is 1-9/16. Other lengths can be furnished if special ordered.

Bolt Hole Size:

All standard Air-Cooled Jumpers are drilled with 17/32” bolt holes, unless otherwise ordered.

When ordering please specify: ACJ/MCM Size and length bolt hole center to bolt hole center and the terminals required. If no terminals are specified the CFF will be furnished.

MCM	1-1/4” WIDE	1-3/8” WIDE	1-1/2” WIDE
400	3/8” Thick
500	7/16”
600	1/2”	7/16” Thick
750	5/8”	9/16”
1000	3/4”	1-1/16”	5/8” Thick
1200	7/8”	13/16”	3/4”
1500	1.00”	1-1/16”	1.00”
2000			1-7/16”

TO ORDER AIR-COOLED JUMPERS (ACJ):
Please specify the following:

Quantity, MCM Size, Terminal Style, Length in Inches (hole center to hole center), Hole Size if other than 1/2” Clearance

EXAMPLE:       10 PCS.       ACJ-500MCM-CFL-22”

XL Air-Cooled Jumpers

The XL line of cables was first introduced in the US in the early 1980’s for the more demanding flex of the newer machines. XL Cables are the same as the standard cable except for the special stranding of the rope. The MCM sizes available are from 400 MCM to 1200 MCM excluding 500 MCM.

The XL Air-Cooled Jumpers were designed for flexibility. In a high flex job, these cables have been reported to last up to 5 times longer than a standard jumper. Because of the special stranding, and the smaller diameter individual wires in the bunches, we recommend that in a high heat application you move up to a larger MCM size, if possible.

Simco also offers XL cables in Water-Cooled Jumpers and Dual Conductor Cables.

TO ORDER EXTRA-FLEX AIR-COOLED JUMPERS (XACJ):
Please specify the following:

Quantity, MCM Size, Terminal Style, Length in Inches (hole center to hole center), Hole Size if other than 1/2” Clearance
